AE-MTR Precision Extruded Stator & Pump Housings

Motor Body Profiles

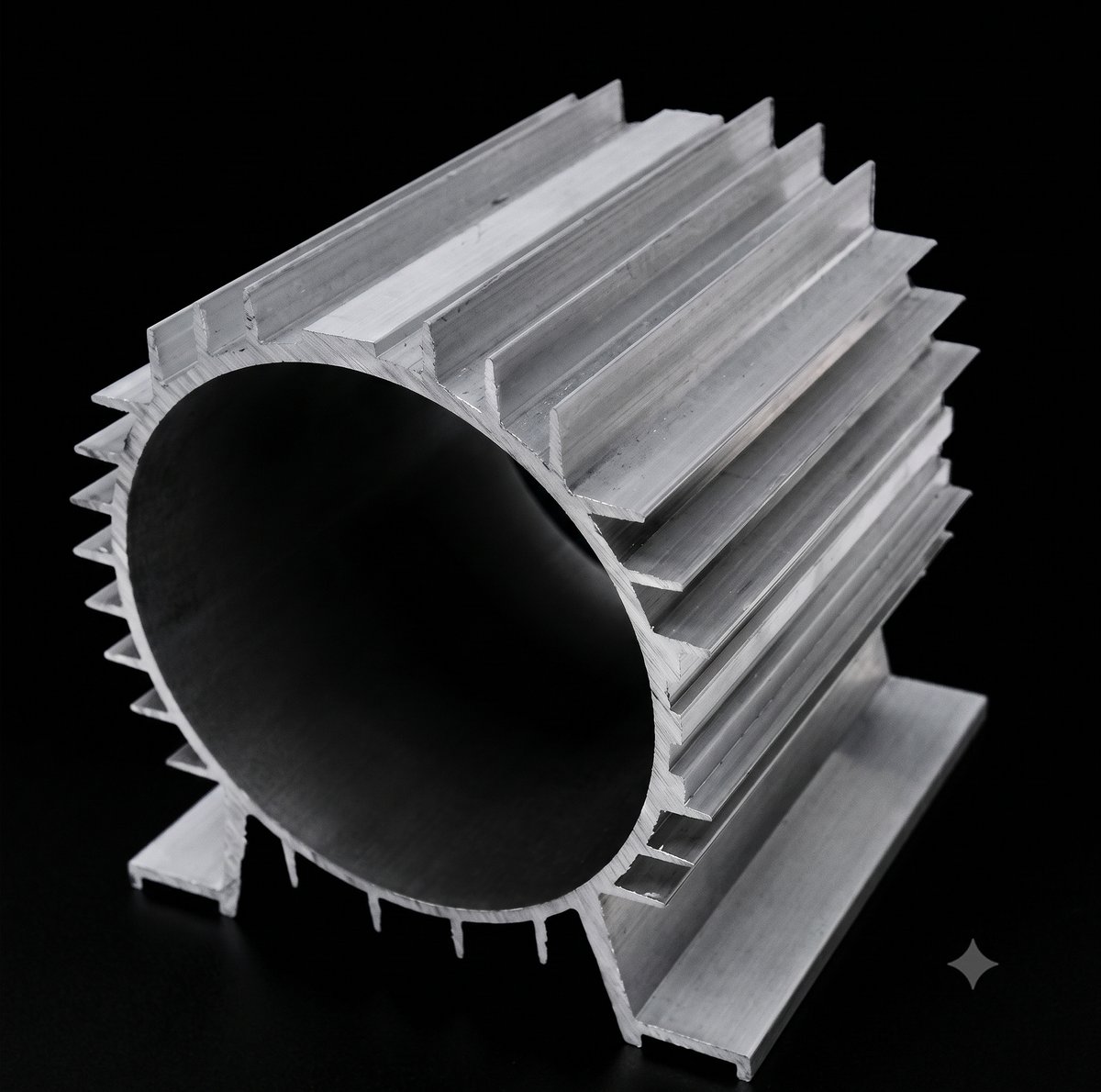

High-efficiency extruded aluminium motor body casings with longitudinal cooling fins engineered for submersible pumps, servo drives, and electric motors.

← Back to All Catalogues

Frame Depth

Bore Dia 80mm - 200mm

Glass Range

N/A (Machined Motor Housing)

Max Sash Weight

N/A (Industrial Machinery)

Thermal Barrier

Thermal Conductivity >200 W/m·K

Air Tightness

Sealed Housing Grade

Water Tightness

IP68 Compatible (Submersible Duty)

Wind Resistance

High Torsional Rigidity

System Overview

Engineering & Performance Highlights

The AE Motor Body Profile series provides high-integrity extruded aluminium casings for electric motor stators, submersible pumps, and industrial drives (die series 200526). Extruded on our 1,450 MT fully automated press using 100% virgin alloy ingots, these tubular sections feature dense, pore-free microstructures that deliver leak-tight reliability for submersible applications and superior thermal conductivity (>200 W/m·K) for rapid motor heat rejection. External longitudinal cooling ribs maximize convective airflow, while precise circular bore dimensions allow fast CNC finish-turning and stator core interference fit.

Key Engineering Advantages

Precision-extruded circular internal bore designed for CNC finish-turning and stator press-fit
Longitudinal external cooling fins maximizing convective heat rejection from motor windings
High-purity virgin alloy with thermal conductivity exceeding 200 W/m·K
Pore-free microstructure ensuring leak-tight performance for submersible pump duty
Tight concentricity and wall-thickness consistency conforming to IS 1285 / IS 733
Superior machinability for end-cover mounting flanges, terminal boxes, and footings
