Stringent Quality & Batch Traceability
Consistency by Design, Compliance by Discipline. Every profile, billet, and finished consignment passes through controlled workflows, advanced in-house lab validation, and strict gate checkpoints before dispatch release.
Advanced Testing Instruments
Chemical analysis, mechanical stress validation, dimensional metrology, and temper verification under one roof — ensuring decisions remain inside our manufacturing campus with zero outsourced uncertainty.

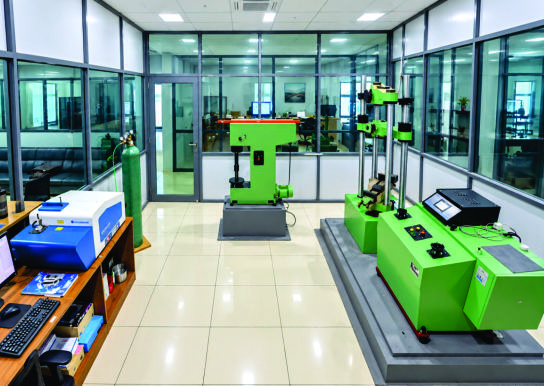

World-Class Quality Laboratory & Compliance
Quality is embedded in every phase of our manufacturing process. Our in-house testing lab is equipped with modern diagnostic equipment to ensure strict compliance with global standards — from raw material preparation and billet casting to high-precision extrusion, heat treatment, and final finishing.

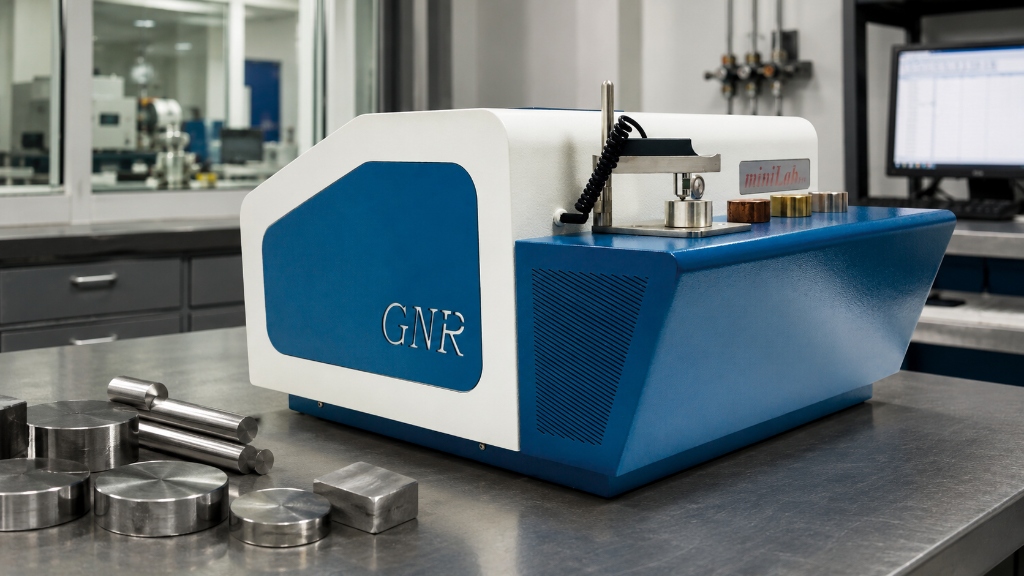

SPECTRO Chemical Analysis (Optical Emission Spectrometer - OES)
Our in-house Optical Emission Spectrometer verifies aluminium alloy chemistry on every melt batch prior to casting and extrusion. It provides 100% heat-wise composition analysis down to parts-per-million, ensuring alloy purity and strict compliance with global standards before any profile reaches the press.

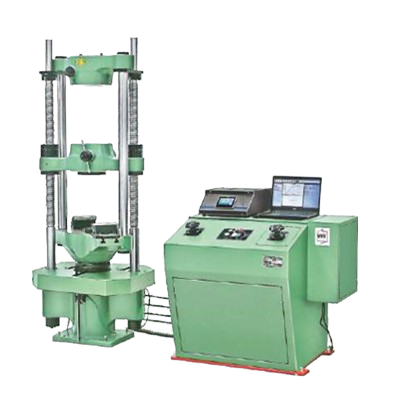

Universal Testing Machine (UTM)
Our computerized Universal Testing Machine performs comprehensive testing for tensile strength, elongation, yield strength, and mechanical hardness parameters on specimen test coupons derived directly from extruded batches.

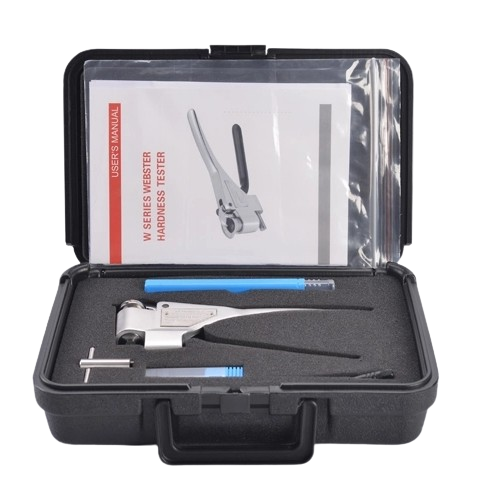

Webster & Brinell Hardness Testers
Dual hardness testing procedures combine rapid shopfloor verification with laboratory heavy-duty indentation. Webster and Brinell testing ensures strict compliance with T4, T5, and T6 temper specifications across thin-wall and thick-section profiles.

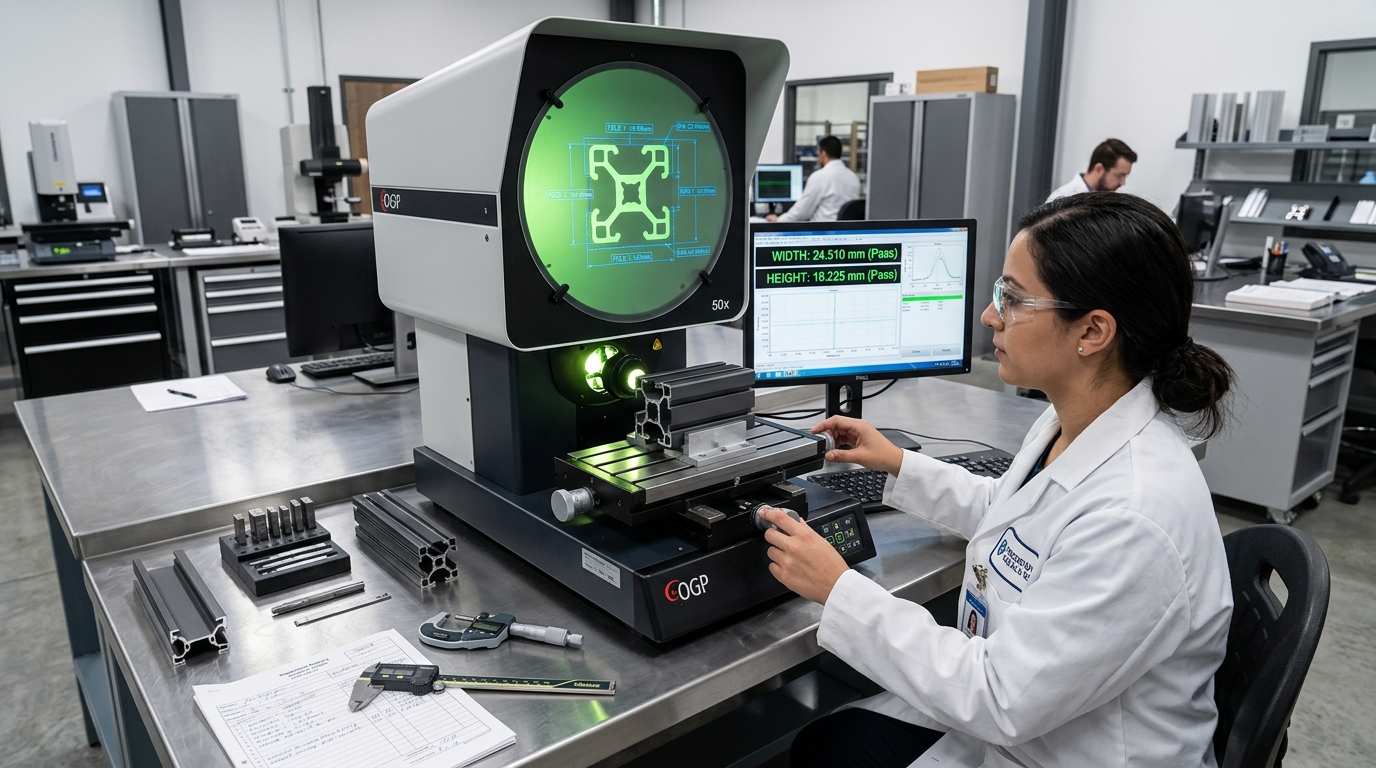

Optical Profile Projector & Dimensional Inspection
Precision optical profile projectors and digital metrology tools inspect extrusion cross-sections against CAD drawing masters. Critical wall thicknesses, snap-fit grooves, screw ports, and corner radii are checked to ±0.1mm tolerance windows.
7-Stage Inspection Gates
From incoming raw ingot verification to certified dispatch release, every production batch passes through defined inspection gates with logged acceptance criteria.
Raw Material Verification
100% Optical Emission Spectrometry on virgin ingots and master alloys to verify chemistry before charge.
Melting & Casting Control
Online degassing, ceramic filtration, and spectro sample verification prior to pouring and log homogenizing.
Tooling & Die Clearance
Die inspection, hardness test of nitrided bearing surfaces, and first-off profile cross-section metrology check.
Extrusion Parameter Monitoring
Continuous monitoring of ram pressure, billet temperature, container heat, and exit speed to ensure uniform structure.
Heat Treatment & Hardness QA
Logged ageing oven cycle times and temperatures, complemented by Webster and Rockwell temper hardness confirmation.
Mechanical Lab Validation
Destructive coupon testing on computerized UTS for yield strength, UTS, and minimum elongation compliance.
Dimensional & Surface Release
100% visual finish audit, micron coating thickness check, squareness check, and Mill Test Certificate (MTC) release.
100% Batch Traceable
Every bundle carries heat numbers and lot codes traceable back to raw billet melt chemistry.
Mill Test Certificates (MTC)
We understand that critical architectural, automotive, and industrial engineering projects demand verifiable documentation. Every shipment of Ample Extrusion profiles is backed by an authentic Mill Test Certificate detailing:
Request MTC or Lab Trial
Need specific tensile guarantees, third-party witness testing, or alloy chemistry certificates for your procurement audit?
Contact Quality TeamReview Our Infrastructure & Technical Catalogues
Discover the 1450 MT press machinery behind our precision profiles, or browse our alloy selection tables.
